(12 Pack) Drawer Slide - Bottom Side Mount - 400mm Drawer Slide Set - 16"

Item #:
L-D68816V-W-R-12
Write a Review
$85.56

Ships within 24 business hours (3-5 business day delivery on average)

Share this:

Product Overview

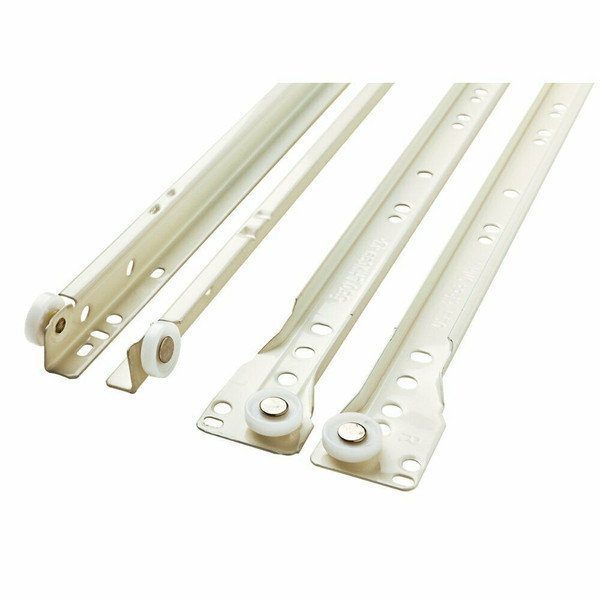

Pair Euro Drawer Slide Bottom Mount - Steel 16" Slide, White Epoxy Coated Single extension, Bottom Mount drawer slide. White epoxy coated for many years of service. 75 pounds rated.

This high quality Liberty nylon roller drawer slide has a self-closing feature which pulls the drawer shut when it is within a couple inches of closing. Euro style slides are unequaled in ease of installation and smooth durability. Added quality features such as self-lubricating premium rollers and 1.2mm steel construction makes this slide pair an excellent choice for both new construction and remodeling. Screws requires #6 x 1/2" and face frame sockets are not included. Sold in pairs only. Buy a case of 25 sets and save big. ( We save handling and pass the savings on to you.) Replaces L-D66350-W-A

Mounting Info: side clearance is 1/2" nominal; drawer section is bottom mounted; case section is 32mm boring pattern (for those who require this feature); large holes will accept 5mm Euro screws and smaller holes are for #6 standard screws-- use either one. Normally mount slide 2mm from cabinet face. Use mounting sockets available separately to mount these slides in a face-frame cabinet. To see mounting instructions click Drawer Slide Mounting Instructions for the .PDF file. If you don't have Adobe Acrobat Reader® installed, you can download it for free at https://adobe.com

L-D68816V-W-R
