Product Overview

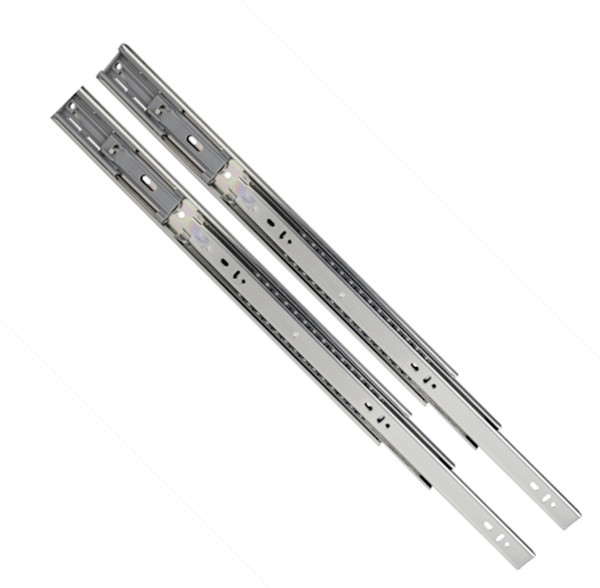

Heavy Duty Ball Bearing Slide Soft Close Full Extension
- Load Rating: 100 pounds Dynamic, 175 pounds Static, ANS/BHMA Grade 1
- Length: 18"
- Travel: Full Extension
- Profile Height: 45mm
- Mounting Style: Non-Handed side mount with flexible tabs for frameless and face frame cabinetry
- Hole Pattern: Easy access 32mm hole pattern accepts European and wood screws (6.3mm euroscrew or #6-8 truss head screws recommended
- Clearance: 1/2 side spacing
- Material: 1.0 x 1.0 x 1.2mm cold rolled steel
- Finish: Clear zinc electroplated
- Bearing: Lubricated steel ball bearings with patented cage to hold forward- retains cage during drawer member installation
- Release: Non-Handed trigger disconnect
Requires only screws for mounting( purchase separately)But rear mounting bracket is available.
HR-303FUSFT18
