(12 Pack) Wrap-Around Single Hinge For 1/2" to 9/16" Flush Doors Sterling Nickel 1-1/2"

Item #:
HAM-CM3180RB-G9-12
Write a Review
$44.52

Ships within 24 business hours (3-5 business day delivery on average)

Share this:

Product Overview

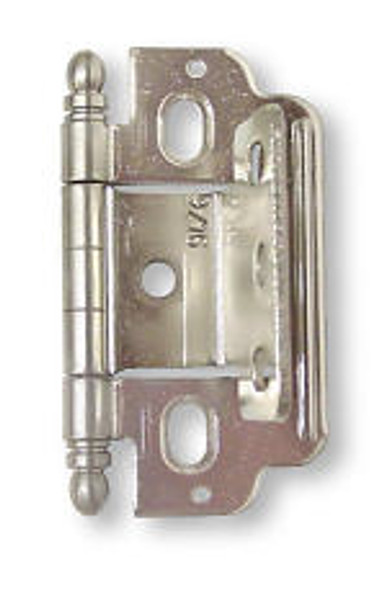

Premium sterling nickel non-mortise wraparound hinge. This is a non-mortise, partial wrap-around (wraps around the back of the door for extra support) with decorative ball finials. This hinge is for a 1/2" door mounted flush to a face frame style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots. This hinge is for use on a face-frame style cabinets. Not for inset or overlay doors or for frame-less cabinets. Think butt hinge with extra support, and you'll understand how this hinge functions.

  • Base Centers: 1 5/8" (41 mm)
  • Base Dimensions:1-1/8" x 1-1/2" (28.58mm x 38.1mm)
  • Leaf Centers: 1" (25.4 mm)
  • Leaf Dimensions: 1-1/2" x 1-1/8" x 9/16" (38.1 mm x 28.58mm x 14.28mm)
  • Finish: Sterling Nickel

HAM-CM3180RB-G9

Door gap as small as 1/16". Suitable for 1/2" thick doors without mortising, mounted on a 3/4" frame. Made in USA.
