Product Overview

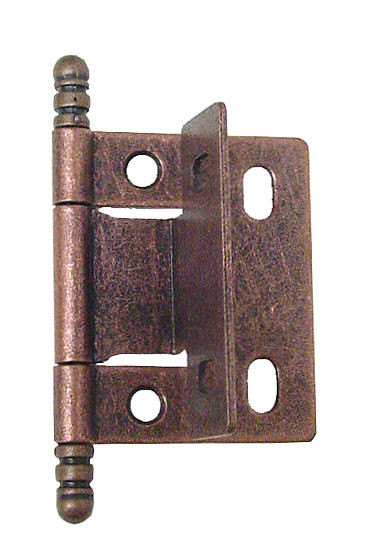

Antique Copper Wraparound, partial wraparound hinge. Full inset hinge for 1/2" max. thickness door. Hinge may also be used as a box lid hinge by mounting door wing on inside back panel of box and attaching side wall wing to box lid. Requires 6 each #6 screws. Purchased separately
- Door Wing Centers: 1 1/4" (31.7mm)
- Door Wing Dimensions: 2" x 3/4"
- Knuckle Projection: 1/4" (6.3mm)
- Base Wing Centers: 1 1/4" X 1 1/2" (31.7mm x 38.1mm)
- Base Wing Dimensions: 2" x 1 1/2" (50.8mm x 38.1 mm)
- Door Wing Projection: 1/16" (1.6mm)
- Finish:Antique Copper
LQ-HN0004-AC-A
