Product Overview

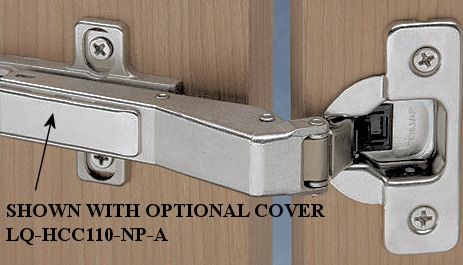

45 Degree Corner Hinge and mounting plate
Concealed self-closing Euro Hinge
Screw-on type
Angled arm is to allow the hinge to be mounted on the side gable
Fits beveled or square cut gable
- TECHNICAL SPECIFICATIONS
- Depth of metal cup 11.3mm
- Cup diameter 35mm
- Opening 95 degrees
- Able to drill door (k) from 3 to 7 mm
- Self closing
- Thickness of door(t) from 16 to 26mm
- Finish: Nickel Plated
You are ordering one hinge and one mounting plate. Does not come with screws.
LQ-H16003-16004-NP
SEE TECHNICAL INFORMATION FOR INSTALLATION INSTRUCTIONS AND CORRECT SCREWS.
Templates and Do-It-Yourself Instructions PDFs: Hinge Installation Template We suggest #6 x 5/8 inch Uni-Chrome Screws.
