Product Overview

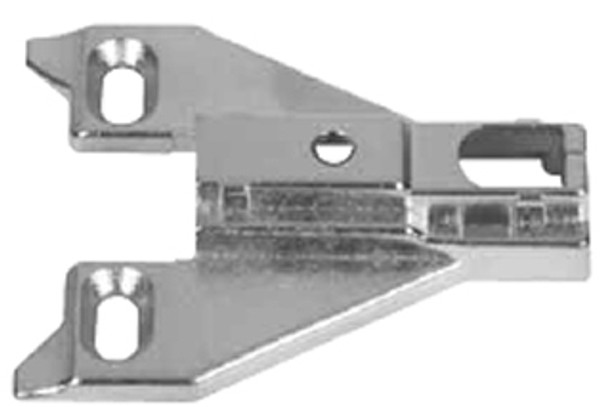

Converts Liberty Easy Clip Concealed Hinges for use on Face Frame Cabinets
Overlay dimension will be either 1/2 inch or 3/4 inch depending on which mounting plate is used. The 6mm plate will achieve an overlay of 1/2 inch on a door in which the bore distance is 5 to 6 millimeters or a 3/8 inch OL on a 2-3 mm bore distance. The bore distance is the distance from the edge of the door to the edge of the 1-3/8 inch cup that is drilled in the back of the door.
Liberty Hardware
LQ-H71051-NP-A
