Product Overview

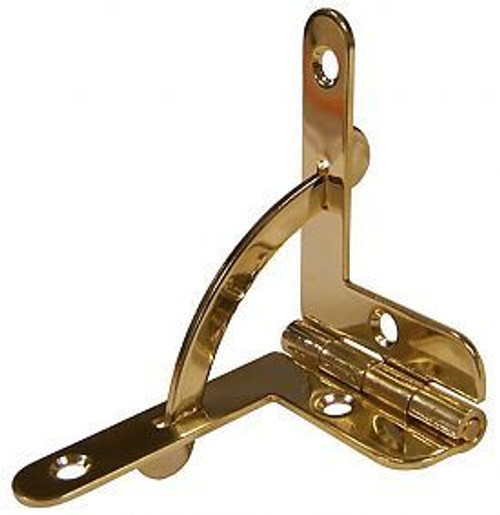

Pair of Quadrant hinge - Solid Brass - Gold Plated. Suggested uses for jewelry boxes and humidors. Requires an additional 1 1/4 inch deep mortise for support arm to recess. Combines hinge action with lid support. 16 Gauge Material.
- Horizontal Centers: 11/16 inch (17 mm)
- Horizontal Dimensions: 1 3/16 inch x 7/16 inch (30.4 mm x 11 mm)
- Vertical Dimensions: 1 5/16 inch x 1/4 inch (33 mm x 7 mm)
- Finish: Solid Brass Gold Plated
H12-C926-30GP
Comes with brass plated screws. Sold in pairs. D. Lawless Hardware SEE TECHNICAL INFORMATION FOR AN INSTALLATION ARTICLE HOSTED ON OUR BLOG.
