(5 Pack) Pie Cut Corner Euro Hinge - Dowels 18mm Crank HR-500-0U22-75

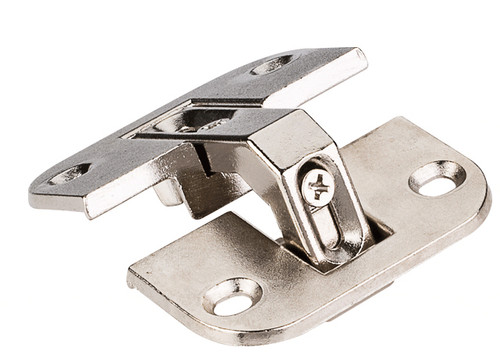

Pie Cut Corner Hinge
Easy to Click on and off
105 Degree Euro Hinge with Dowels
18mm Crank

• Used for Lazy Susan or Pie Cut Inside Corner Cabinets

• This is the hinge that attaches the two doors together.
  A 165-170 Degree hinge is used to attach the two doors to the cabinet frame

• Maximum opening is 105 degrees

• Cup diameter 35mm

• For door thickness 3/4 inch, use HR-400-0R22-05 0mm mounting plate
  For door thickness 5/8 inch use HR-400-1234-05 3mm mounting plate

• Installs in a 35mm boring in the back of the second door 3 mm from the edge


Dowels and screws are included with each hinge. Dowels are used in MDF or particle board. If mounting in solid wood, remove the dowels and use the wood screws included in the dowels
ORDER MOUNTING PLATE AS REQUIRED : Use HR-400-1233-75 0mm Mounting Plate For door thickness 3/4 inch, use HR-400-0R22-05 0mm mounting plate
For door thickness 5/8 inch use HR-400-1234-05 3mm mounting plate
