Product Overview

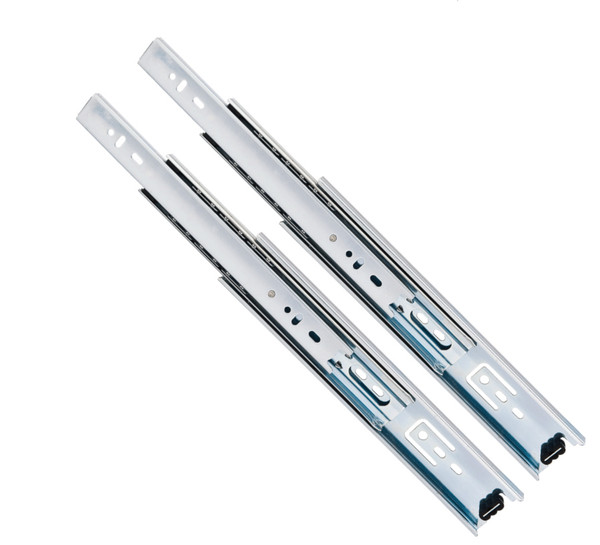

Ball Bearing Drawer Slide Set
BFMA 100 Pound Dynamic 200 Pound Static
Full Extension
Release Lever For Drawer Removal
45mm or 1-3/4 inch Profile Height
Non-Handed Side Mount with flexible tabs fro frameless and face frame cabinetry
Hole Pattern: Easy Access 32mm system hole pattern accepts European and wood screws(6.3mm euro screw or #8 x 7/16 inch truss head screw recommended
Clearance: 1/2 inch side spacing
Material: 1.0mm x 1.0mm x 1.2mm cold rolled steel
Zinc Plated
Bearing is lubricated steel ball bearings with patented cage hold forward-retains cage during drawer member installation
Synthetic rubber hold-in detent prevents drawer bounce back roll-out
Professional Packed-No Screws or Instructions Included
303FU2 Rear Mounting Brackets Sold Separately
HR-303FU16
