Product Overview

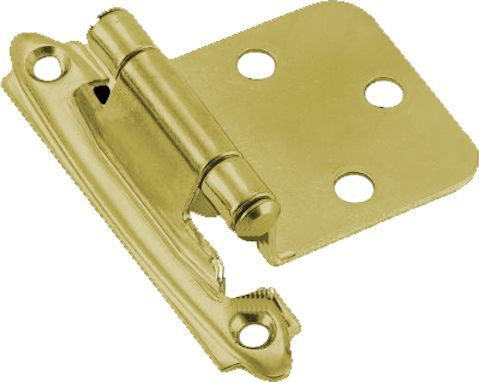

Bright Brass Semi-concealed, Self-closing, Overlay hinge, Bright Brass plated. Priced each with screws.
- Base Wing Centers: 2 1/8 inch (54 mm)
- Base Wing Dimensions: 2 3/4 inch x 1/2 inch (70 mm x 13 mm)
- Knuckle Projection: 5/8 inch (16 mm)
- Door Wing Centers: 1 inch and 3/4 inch (25.4 mm and 19 mm)
- Door Wing Dimensions: 1 5/16 inch x 1 1/2 inch (33 mm x 38 mm)
- Door Wing Projection: 1/16 inch (1.6 mm)
- Inset: none
- Finish: Bright Brass
LQ-H0103BW-BP-C
Liberty Hardware
H11-H501BP Requires five #5 Brass Plated Screws.
