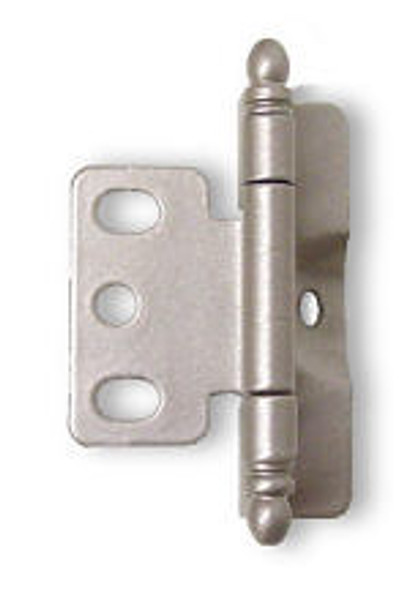

(5 Pack) Wrap-Around Non-Mortise Single Hinge for 3/4 inch Flush Doors Champagne Finish 2 1/4 inch

Item #:
HAM-PK3175TB-CP-5
Write a Review
$12.82
Current Stock:
154

Ships within 24 business hours (3-5 business day delivery on average)

Share this:

Product Overview

Premium Champagne non-mortise wraparound hinge. This is a non-mortise, full wrap-around (wraps around the back of the door and the face of the cabinet for extra support) with decorative ball finials. This hinge is for a 3/4 inch door mounted flush to a face frame style cabinet. The hinge has 4 adjustable slots for screws and comes with the screws necessary for mounting. The hinge can be adjusted using the slotted screw holes and locked into place using the non-adjustable slots.This hinge is for use on a face-frame style cabinets. Not for overlay doors or for frameless cabinets. Think butt hinge with extra support, and you'll understand how this hinge functions.

  • Base Centers: 1 5/8 inch (41 mm)
  • Base Dimensions: 2-1/4 inch x 7/8 inch x 1/2 inch (57.15mm x 22.23mm x 12.7mm)
  • Leaf Centers: 1 inch (25.4 mm)
  • Leaf Dimensions: 1-1/2 inch x 1 inch x 3/4 inch (38.1 mm x 25.4mm x 19.05mm)
  • Finish: Champagne

HAM-PK3175TB-CP

Door gap as small as 1/16 inch. Suitable for 3/4 inch thick doors without mortising, mounted on a 3/4 inch frame. These hinges work well for entertainment center doors with incharticulated inch doors Door gap as small as 1/16 inch because of no-mortise style. Purchasing a single hinge. Made in USA. Amerock
